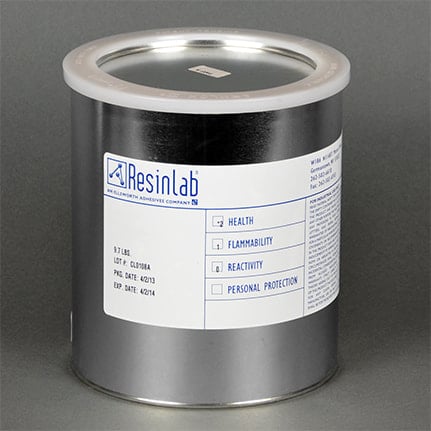

ResinLab EP1285 Conductive Encapsulant Black 1 gal Pail

Part number: EP1285 BLACK GL
ResinLab EP1285 Conductive Encapsulant Black 1 gal Pail
Quantity Price
1 $2,336.52 ($584.13 each) 2336.520000000 USD New Limited Availability EP1285 BLACK GL
2 $1,799.12 ($449.78 each) 1799.120000000 USD New Limited Availability EP1285 BLACK GL
3+ $1,670.60 ($417.65 each) 1670.600000000 USD New Limited Availability EP1285 BLACK GL
Sold as a pack (4/pk).
Usually Ships in 3-4 Business Weeks. NON-RETURNABLE.
  • A Made in the USA

ResinLab EP1285 Black is a two component, highly filled casting resin that is used for applications that require low CTE and high thermal conductivity. It is medium viscosity and resistance to bases, acids, water, and most organic solvents. Resin only, 1 gal Pail.

ResinLab EP1285 Black is a two component, highly filled casting resin that is used for applications that require low CTE and high thermal conductivity. It is medium viscosity and resistance to bases, acids, water, and most organic solvents. Resin only, 1 gal Pail.
Typical Use: Designed for applications requiring a high degree of thermal conductivity and a low CTE combined with a moderate free flowing viscosity.
Chemical Composition: Epoxy
Color: Black
Components: 2 part
Cure Time: HD-9: 48h @ 25 °C, 3h @ 65 °C; HD-10: 2h @ 80 °C, 3h @ 150 °C; HD-12: 2h @ 80 °C, 3h @ 150 °C; HD-14: 36h @ 25 °C, 3h @ 65 °C; HD-16: 36h @ 25 °C, 3h @ 65 °C
Dielectric Strength: HD-9: 365 V/mil; HD-10: 400 V/mil; HD-12: 380 V/mil; HD-14: 380 V/mil; HD-16: 375 V/mil
Elongation: HD-9: 1.5% @ break; HD-10: 1% @ break; HD-12: 0.9% @ break; HD-14: 1.5% @ break; HD-16: 1.7% @ break
Flash Point: >93 °C
Hardness: 90 D
Mix Ratio: HD-9: 11.32:1 by volume, 27:1 by weight; HD-10: 2.5:1 by volume, 4.76:1 by weight; HD-12: 6.65:1 by volume, 15.55:1 by weight; HD-14: 5.7:1 by volume, 13.4:1 by weight; HD-16: 5.7:1 by volume, 13.4:1 by weight
Service Temperature: HD-9: -40 to 130 °C; HD-10: -20 to 180 °C; HD-12: -50 to 150 °C; HD-14: -60 to 120 °C; HD-16: -60 to 120 °C
Shear Strength: HD-9: 900; HD-10: 1,150; HD-12: 1,500; HD-14: 1,800; HD-16: 1,480
Specific Gravity: HD-9: 2.27; HD-10: 2.05; HD-12: 2.20; HD-14: 2.17; HD-16: 2.17
Tensile Strength: HD-9: 5,200 psi; HD-10: 6,500 psi; HD-12: 4,000 psi; HD-14: 5,800 psi; HD-16: 6,900 psi
Thermal Conductivity: HD-9: 1.2 W/mK; HD-10: 0.79 W/mK; HD-12: 1.1 W/mK; HD-14: 1.0 W/mK; HD-16: 0.94 W/mK
Viscosity: HD-9: 8,000; HD-10: 2,700; HD-12: 15,000; HD-14: 4,500; HD-16: 4,500
Volume Resistivity: HD-9: 1.7 x 10^16 ohm-cm; HD-10: 1 x 10^15 ohm-cm; HD-12: 3.2 x 10^16 ohm-cm; HD-14: 1 x 10^15 ohm-cm; HD-16: 1 x 10^15 ohm-cm
