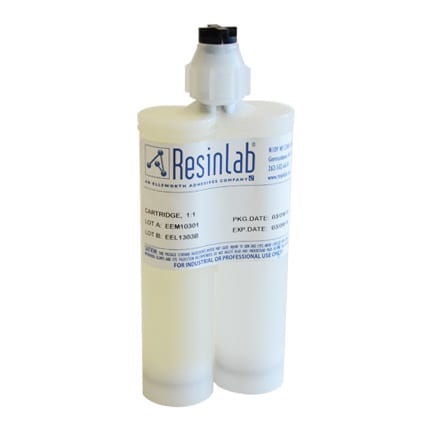

ResinLab EP1046FG Epoxy Encapsulant Clear 200 mL Cartridge

Part number: EP1046FG CLEAR 200ML
ResinLab EP1046FG Epoxy Encapsulant Clear 200 mL Cartridge
Quantity Price
1-4 $6,039.65 ($62.91 each) 6039.650000000 USD New Limited Availability EP1046FG CLEAR 200ML
5-24 $4,645.06 ($48.39 each) 4645.060000000 USD New Limited Availability EP1046FG CLEAR 200ML
25+ $4,322.59 ($45.03 each) 4322.590000000 USD New Limited Availability EP1046FG CLEAR 200ML
Sold as a pack (96/pk).
  • Item usually ships in 15-20 business days
  • Item is noncancelable and nonreturnable
  • A Made in the USA
  • K Haz Class 9

 Description

ResinLab EP1046FG Clear is a two component, room temperature and heat curing, epoxy encapsulant that is used for small castings. It is electronic grade, semi-rigid, fast curing, low viscosity, and resistant to water and most solvents. 400 mL Cartridge.

<p>ResinLab EP1046FG Clear is a two component, room temperature and heat curing, epoxy encapsulant that is used for small castings. It is electronic grade, semi-rigid, fast curing, low viscosity, and resistant to water and most solvents. 400 mL Cartridge.</p>

Typical Use: Designed for small castings (less than 25 grams).
Chemical Composition: Epoxy/acrylate
Color: Clear
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 1 to 2h @ room temperature; 30min @ 65 °C; 10min @ 100 °C
Dielectric Strength: 410 V/mil
Elongation: 7% @ break
Hardness: 80 D
Mix Ratio: 1:1 by volume; 1.19:1 by weight
Service Temperature: -40 to 150 °C
Specific Gravity: Mixed: 1.06
Tensile Strength: 4,800 psi
Thermal Conductivity: 0.1 W/mK
Viscosity: Mixed: 2,000
Volume Resistivity: 4.8 x 10^15 ohm-cm
