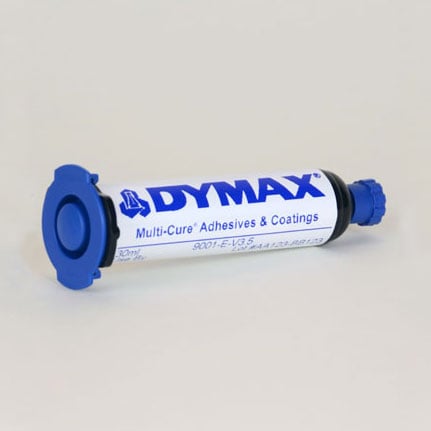

Dymax Multi-Cure 9001-E-V3.5 UV Curing Encapsulant Clear 30 mL MR Syringe

Part number: 9001-E-V3.5 30ML MR SYR Manufacturer SKU: 9001-E-V3.5/30SYMR
Dymax Multi-Cure 9001-E-V3.5 UV Curing Encapsulant Clear 30 mL MR Syringe
Quantity Price
1-4 $43.15 43.150000000 USD New Available 9001-E-V3.5 30ML MR SYR
5-32 $33.23 33.230000000 USD New Available 9001-E-V3.5 30ML MR SYR
33+ $30.85 30.850000000 USD New Available 9001-E-V3.5 30ML MR SYR
In Stock. Usually Ships in 1-2 Business Days. NON-RETURNABLE.
  • A Made in the USA

DYMAX 9001-E-V3 Series Encapsulant Clear is a one component, UV light and heat curing, acrylated urethane that is used for bonding electronic devices, print circuit boards, glass, multi-chip modules, chip-on-flex, and chip-on-board applications. It offers flexibility, good electrical properties, and resistance to thermal cycle and moisture. 30 mL MR Syringe.

DYMAX 9001-E-V3 Series Encapsulant Clear is a one component, UV light and heat curing, acrylated urethane that is used for bonding electronic devices, print circuit boards, glass, multi-chip modules, chip-on-flex, and chip-on-board applications. It offers flexibility, good electrical properties, and resistance to thermal cycle and moisture. 30 mL MR Syringe.
Typical Use: Multi-Cure 9001-E-V3 series encapsulants display excellent adhesion to PC boards and electronic components and are especially well suited for chip on board, chip on flex, and multi-chip modules.
Brand: Multi-Cure
Chemical Composition: Acrylated urethane
Color: Clear
Components: 1 part
Cure System: UV
Cure Time: UV Cure: Up to 15s depending on lamp intensity, distance from the light source, and required depth of cure; Heat Cure: 60min @ 110 °C
Dielectric Strength: 500 kV/mm
Elongation: 150% @ break
Flash Point: 101 °C
Hardness: 45 D
Service Temperature: -54 °C to 150 °C
Tensile Strength: 750 psi @ break
Viscosity: 17,000
Volume Resistivity: 555 x 10^12 ohm-cm
