Part number: UR6000 BLACK B GL
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

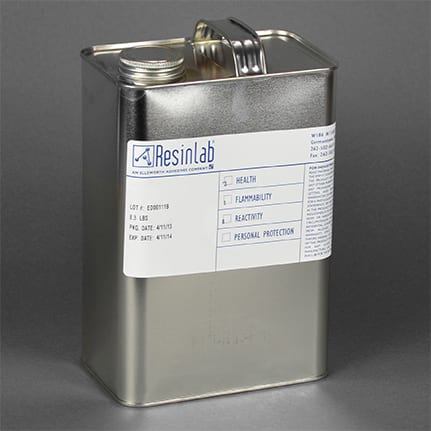

ResinLab UR6000 Urethane Encapsulant Black is a two component, room temperature curing resin that is used for potting and encapsulation of electronic devices. It is low viscosity with a 4:1 by volume ratio for ease of use with automatic mixing equipment. Part B, 1 gal Pail.
UR6000 Black is recognized under the Component Recognition Program of Underwriters Laboratories Inc., (File# E186034) for UL Standard 94. It qualifies for a vertical burn rating of V-0 at 3mm thickness.
| Typical Use: | Used for potting and encapsulation of electronic devices. |
| Chemical Composition: | Urethane |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 72h @ 25 °C; 2h @ 65 °C; 0.5h @ 100 °C |
| Dielectric Strength: | 384 V/mil |
| Elongation: | 30% |
| Flash Point: | >150 °C |
| Hardness: | 70 D |
| Mix Ratio: | 4:1 by volume; 5.03:1 by weight |
| Service Temperature: | -40 to 120 °C |
| Shear Strength: | 475 to 1,200 |
| Specific Gravity: | Part A: 1.55; Part B: 1.23; Mixed: 1.48 |
| Tensile Strength: | 1,500 psi |
| Thermal Conductivity: | 0.50 W/mK |
| Viscosity: | Part A: 18,000; Part B: 400; Mixed: 5,000 |
| Volume Resistivity: | 1.40 x 10^15 ohm-cm |
| Working Time: | 4min |
