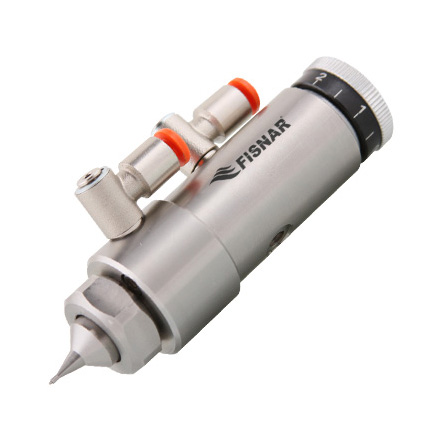

Fisnar SV2001N Fine Bead Adjustable Spray Valve

Part number: SV2001N
Fisnar SV2001N Fine Bead Adjustable Spray Valve
Quantity Price
1 $1,589.00 1589.000000000 USD New Available SV2001N
2 $1,571.23 1571.230000000 USD New Available SV2001N
3+ $1,520.32 1520.320000000 USD New Available SV2001N
In Stock. Usually Ships in 1-2 Business Days.

Fisnar SV2001N is a no-clog, adjustable spray valve with a fine bead and dot pattern. It works best with low viscosity materials, typically less than 1,000 cps. Material is typically fed to the spray valve from a pressure reservoir. The valve is actuated by air pressure sequenced by a controller. The operating air pressure opens a needle valve allowing material to flow, while a separate airline creates pressure in the cap, atomizing the fluid.

<p>Fisnar SV2001N is a no-clog, adjustable spray valve with a fine bead and dot pattern. It works best with low viscosity materials, typically less than 1,000 cps.&nbsp;<span>Material is typically fed to the spray valve from a pressure reservoir. The valve is actuated by air pressure sequenced by a controller. The operating air pressure opens a needle valve allowing material to flow, while a separate airline creates pressure in the cap, atomizing the fluid.</span></p>
Typical Use: Ajustable spray valve designed for dispensing low viscosity materials.
Dispensing Valve Type: Spray
  • Fisnar Video - Spraying Conformal Coating Using SV2001N Spray Valve with F4303N ADVANCE 3-Axis Robot

  • Fisnar Video - Spraying Protective Lacquer Using SV2001N Spray Valve and F4303N ADVANCE 3-Axis Robot
