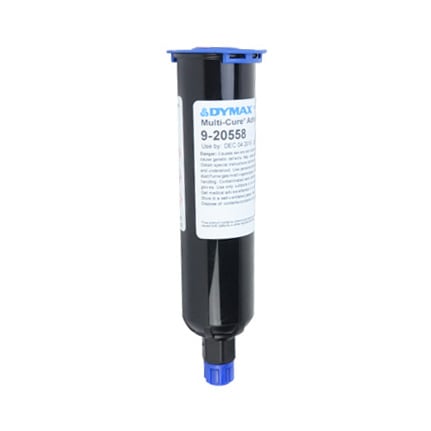

Dymax Multi-Cure 9-20558 UV Curing Conformal Coating Clear 170 mL Cartridge

Part number: 9-20558 170ML CTG Manufacturer SKU: 9-20558/160CRT
Dymax Multi-Cure 9-20558 UV Curing Conformal Coating Clear 170 mL Cartridge
Quantity Price
1 $142.80 142.800000000 USD New Limited Availability 9-20558 170ML CTG
2-9 $109.95 109.950000000 USD New Limited Availability 9-20558 170ML CTG
10+ $102.10 102.100000000 USD New Limited Availability 9-20558 170ML CTG
We are currently experiencing delays from this supplier. Lead times may vary as product becomes available. Non-returnable product. Canceled orders may incur a fee at the supplier’s discretion.
  • A Made in the USA

DYMAX Multi-Cure 9-20558 Clear is a one component, UV light and heat curing conformal coating that is used for coating electronic devices and print circuit boards. It is solvent free and offers flexibility, no slumping and a fast cure time. 170 mL Cartridge.

<p>DYMAX Multi-Cure 9-20558 Clear is a one component, UV light and heat curing conformal coating that is used for coating electronic devices and print circuit boards. It is solvent free and offers flexibility, no slumping and a fast cure time. 170 mL Cartridge.</p>
Typical Use: Multi-Cure 9-20558 is excellent for encapsulating, potting, sealing and bonding. The coating exhibits excellent adhesion to a variety of ceramic, metal and glass-filled epoxy surfaces.
Brand: Multi-Cure
Color: Clear
Components: 1 part
Cure System: UV/Heat
Cure Time: Secondary Heat Cure: 30min @ 120 °C; 15min @ 150 °C
Dielectric Strength: Solid: 500 V/mil; Liquid: 45 V/mil
Elongation: 75% @ break
Flash Point: 101 °C
Hardness: 45 D
Tensile Strength: 1,000 psi
Viscosity: 20,000
Volume Resistivity: 500 x 10^12 ohm-cm
