Part number: 1B59LU 5 LITER
We have been informed by the vendor that this item is discontinued and no longer available. Please contact your Ellsworth Customer Service Representative for assistance.

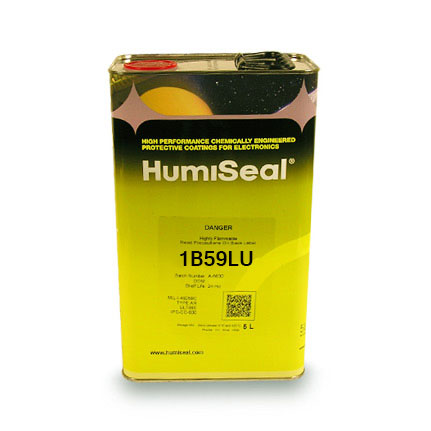

HumiSeal® 1B59LU Synthetic Rubber Conformal Coating is a one component, air drying synthetic rubber coating that offers low moisture vapor permeability, flexibility and low stress on components. It can be applied by spraying, brushing, or dipping methods. 5 L Can.
| Typical Use: | Provides excellent moisture and environmental protection for printed circuit assemblies. |
| Chemical Composition: | Synthetic rubber |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 30min @ 76 °C |
| Dielectric Strength: | 85 kV/mm |
| Flash Point: | -3.9 °C |
| Key Specifications: | HumiSeal 1B59LU is in full compliance with the RoHS Directive 2011/65/EC and meets the requirements of IPC-CC-830. |
| Service Temperature: | -65 to 150 ºC |
| Specific Gravity: | 0.77 |
| Viscosity: | 170 - 250 |
| Volume Resistivity: | 8.5 x 10^15 ohm-cm |
