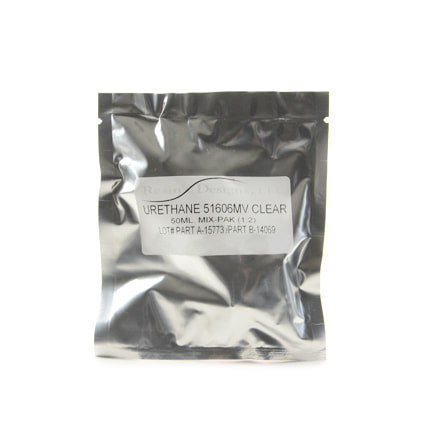

Resin Designs 51606MV Urethane Encapsulant Clear 50 mL Mixpac

Part number: 51606MV 50ML MIXPAC
Resin Designs 51606MV Urethane Encapsulant Clear 50 mL Mixpac

For current pricing and to place an order please contact your Ellsworth Customer Service Representative.



Call Us

Call Us
Contact Customer Service at 1 (877) 454-9224.



Request a Quote

Request a Quote
Submit a quote request and a Sales Representative will contact you.

Send an Email

Send an Email
We will respond within 1 business day.

Resin Designs 51606MV Urethane Encapsulant Clear is a two component, room temperature curing polyurethane that is used for encapsulation and potting applications. It is high performance and moisture resistant. 2:1 mix ratio by volume. 50 mL Mixpac.

Resin Designs 51606MV Urethane Encapsulant Clear is a two component, room temperature curing polyurethane that is used for encapsulation and potting applications. It is high performance and moisture resistant. 2:1 mix ratio by volume. 50 mL Mixpac.
Typical Use: Used for encapsulation and potting applications.
Chemical Composition: Polyurethane
Color: Clear
Components: 2 part
Cure System: Room Temperature
Cure Time: 12 to 24h @ room temperature
Dielectric Strength: > 400 V/mil
Elongation: 200%
Hardness: 39 D
Mix Ratio: 2:1 by volume
Service Temperature: -60 to 120 °C
Specific Gravity: Part A: 1.23; Part B: 0.98
Tensile Strength: > 2,000
Viscosity: Light paste
Working Time: 5min @ 25 °C
