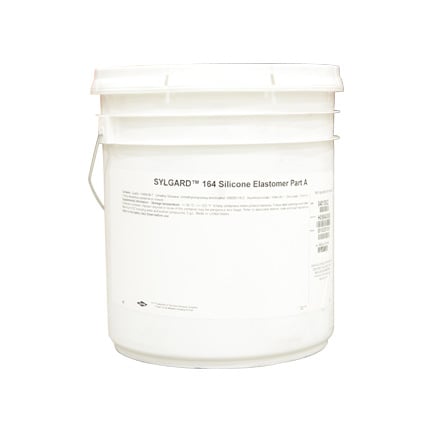

Dow SYLGARD™ 164 Silicone Encapsulant Part A Gray 24.9 kg Pail

Part number: 164 SIL ELAST PT A 24.9KG Manufacturer SKU: 4013032
Dow SYLGARD™ 164 Silicone Encapsulant Part A Gray 24.9 kg Pail
Quantity Price
1 $694.11 694.110000000 USD New Available 164 SIL ELAST PT A 24.9KG
2 $633.96 633.960000000 USD New Available 164 SIL ELAST PT A 24.9KG
3+ $620.08 620.080000000 USD New Available 164 SIL ELAST PT A 24.9KG
In Stock. Usually Ships in 1-2 Business Days.
  • A Made in the USA

Dow SYLGARD™ 164 Silicone Elastomer Gray is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, thermal conductivity, and flame resistance. 1:1 mix ratio. Part A, 24.9 kg Pail.

<p>Dow SYLGARD™ 164 Silicone Elastomer Gray is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, thermal conductivity, and flame resistance. 1:1 mix ratio. Part A, 24.9 kg Pail.</p>
Typical Use: General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays.
Brand: SYLGARD
Color: Charcoal Gray
Components: 2 part
Cure System: Room Temperature
Cure Time: 35min @ 25 °C
Dielectric Strength: 19 kV/mm
Flash Point: >101.1 °C
Hardness: 61 A
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -45 to 200 °C
Specific Gravity: Part A: 1.58 @ 25 °C; Mixed: 1.57
Thermal Conductivity: 0.64 W/mK
Viscosity: Part A: 4,400; Mixed: 8,925
Volume Resistivity: 1.1 x 10^13 ohm-cm
Working Time: 14min @ room temperature
