Part number: PFQ3657501
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

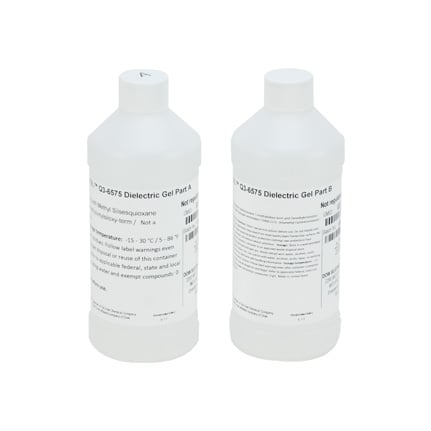

Dow DOWSIL™ Q3-6575 Dielectric Gel Clear is a two component, heat curing, low temperature, silicone gel that is used for protecting and sealing electronic devices from high voltages, moisture, mechanical and thermal shock. 1:1 mix ratio by weight or volume. 0.9 kg Kit.
This is a Dow product repackaged by KitPackers, an authorized repackager of Dow.
| Typical Use: | Sealing and protecting (by coating, encapsulating, or potting) various electronic devices, especially those with delicate components and exposure to low temperatures. |
| Brand: | DOWSIL |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 40min @ 70 °C; 20min @ 100 °C |
| Dielectric Strength: | 18 kV/mm |
| Flash Point: | >101.1 °C |
| Mix Ratio: | 1:1 |
| Specific Gravity: | Mixed: 1.02 |
| Viscosity: | Mixed: 750 |
| Volume Resistivity: | 1.2e + 14 ohm-cm |
| Working Time: | 20min |
