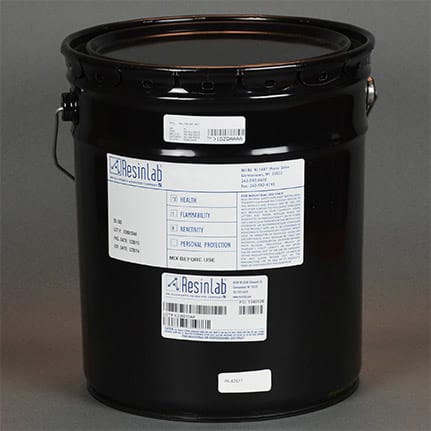

ResinLab EP1200LV Epoxy Encapsulant Part A Black 5 gal Pail

Part number: EP1200LV - A PL Manufacturer SKU: EP1200LV A PL
ResinLab EP1200LV Epoxy Encapsulant Part A Black 5 gal Pail
Quantity Price
1 $615.16 615.160000000 USD New Limited Availability EP1200LV - A PL
2 $571.22 571.220000000 USD New Limited Availability EP1200LV - A PL
3+ $535.27 535.270000000 USD New Limited Availability EP1200LV - A PL
Usually Ships in 3-4 Business Weeks. NON-RETURNABLE.

ResinLab EP1200LV Black is a lower viscosity version of EP1200. It is a two component, room temperature and heat curing, highly filled, casting resin that consists of an abrasive aluminum oxide filler. It offers high flexibility, medium viscosity, low CTE, and good thermal conductivity. Part A, 5 gal Pail.

<p>ResinLab EP1200LV Black is a lower viscosity version of EP1200. It is a two component, room temperature and heat curing, highly filled, casting resin that consists of an abrasive aluminum oxide filler. It offers high flexibility, medium viscosity, low CTE, and good thermal conductivity. Part A, 5 gal Pail.</p>
Typical Use: Designed for applications requiring a high degree of thermal conductivity, flexibility and a low CTE.
Chemical Composition: Epoxy
Color: Black
Components: 2 part
Cure System: Room Temperature
Cure Time: 24 to 72h @ 25 °C; 2h @ 65 °C; 30min @ 100 °C
Dielectric Strength: 500 V/mil
Elongation: 30%
Flash Point: >126 °C
Hardness: 70 D
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -40 to 150 °C
Shear Strength: 1,100
Specific Gravity: Part A: 1.55; Part B: 1.66; Mixed: 1.61
Tensile Strength: 1,300 psi
Thermal Conductivity: 0.40 W/mK
Viscosity: Part A: 7,500; Part B: 22,000; Mixed: 25,000
Volume Resistivity: 3.61 x 10^14 ohm-cm
Working Time: 15 to 20min
