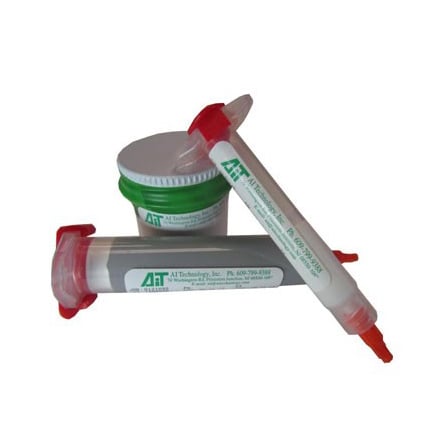

AI Technology PRIMA-SOLDER EG8050-E Epoxy Paste Adhesive 3 cc EFD Syringe

Part number: EG8050-E 3CC EFD SYRINGE Manufacturer SKU: EG8050-E
AI Technology PRIMA-SOLDER EG8050-E Epoxy Paste Adhesive 3 cc EFD Syringe

For current pricing and to place an order please contact your Ellsworth Customer Service Representative.



Call Us

Call Us
Contact Customer Service at 1 (877) 454-9224.



Request a Quote

Request a Quote
Submit a quote request and a Sales Representative will contact you.

Send an Email

Send an Email
We will respond within 1 business day.

AI Technology EG8050-E is an electrically conductive, silver filled epoxy paste adhesive. It exhibits excellent flexibility for bonding materials with highly mismatched CTE's (i.e. alumina to aluminum, silicon to copper). EG8050-E can be readily reworked at 80 to 100 ºC and is fitting for applications such as large area die attach and substrate attach because of its capability to bond materials with highly mismatched CTE's. Both viscosity and thixotropic index can be modified to your specific needs. EG8050-E is available in syringes for automatic needle dispensing applications or in jars. EG8050-E can be premixed and frozen. Premixed 3 cc EFD Syringe.

AI Technology EG8050-E is an electrically conductive, silver filled epoxy paste adhesive. It exhibits excellent flexibility for bonding materials with highly mismatched CTE's (i.e. alumina to aluminum, silicon to copper). EG8050-E can be readily reworked at 80 to 100 ºC and is fitting for applications such as large area die attach and substrate attach because of its capability to bond materials with highly mismatched CTE's. Both viscosity and thixotropic index can be modified to your specific needs. EG8050-E is available in syringes for automatic needle dispensing applications or in jars. EG8050-E can be premixed and frozen. Premixed 3 cc EFD Syringe.

Typical Use: Ideal for large area die, re-workability, mismatched CTE's and solder replacement.
Chemical Composition: Silver
Components: 1 or 2 part
Cure System: Room Temperature/Heat
Cure Time: 120h @ 25 °C; 8h @ 80 °C; 2h @ 125 °C; 1h @ 150 °C
Hardness: 80 A
Service Temperature: 80 to 100 °C
Shear Strength: 600
Specific Gravity: 3.3
Thermal Conductivity: 7.9 W/mC
Viscosity: 180,000
