Part number: EP1199 BLACK A PL
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

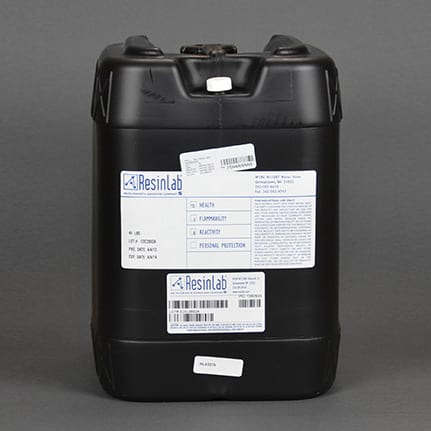

ResinLab EP1199 Black is a two component, room and elevated temperature curing, unfilled epoxy that is used for bonding plastics, metal, and ceramics. It provides good resistance to temperature, salt solutions, water, most organic and inorganic solvents. Part A, 5 gal Pail.
| Typical Use: | Used for the bonding of metals, ceramics and most plastics. |
| Chemical Composition: | Epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 24h @ room temperature |
| Dielectric Strength: | 420 V/mil |
| Elongation: | 1% to 2% @ break |
| Flash Point: | 249 °C |
| Hardness: | 80 D |
| Mix Ratio: | 1:1 by volume; 100:85 by weight |
| Peel Strength: | 3 to 5 pli |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 1,500 |
| Specific Gravity: | Part A: 1.16; Mixed: 1.06 |
| Tensile Strength: | 5,500 psi |
| Viscosity: | Part A: 15,000; Mixed: 9,000 |
| Volume Resistivity: | 10 x 10^14 ohm-cm |
| Working Time: | 8 to 12min |
-
